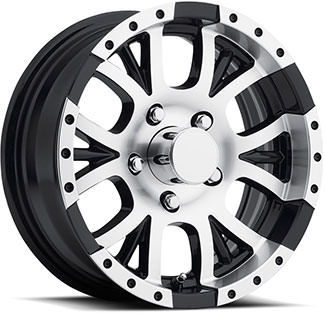

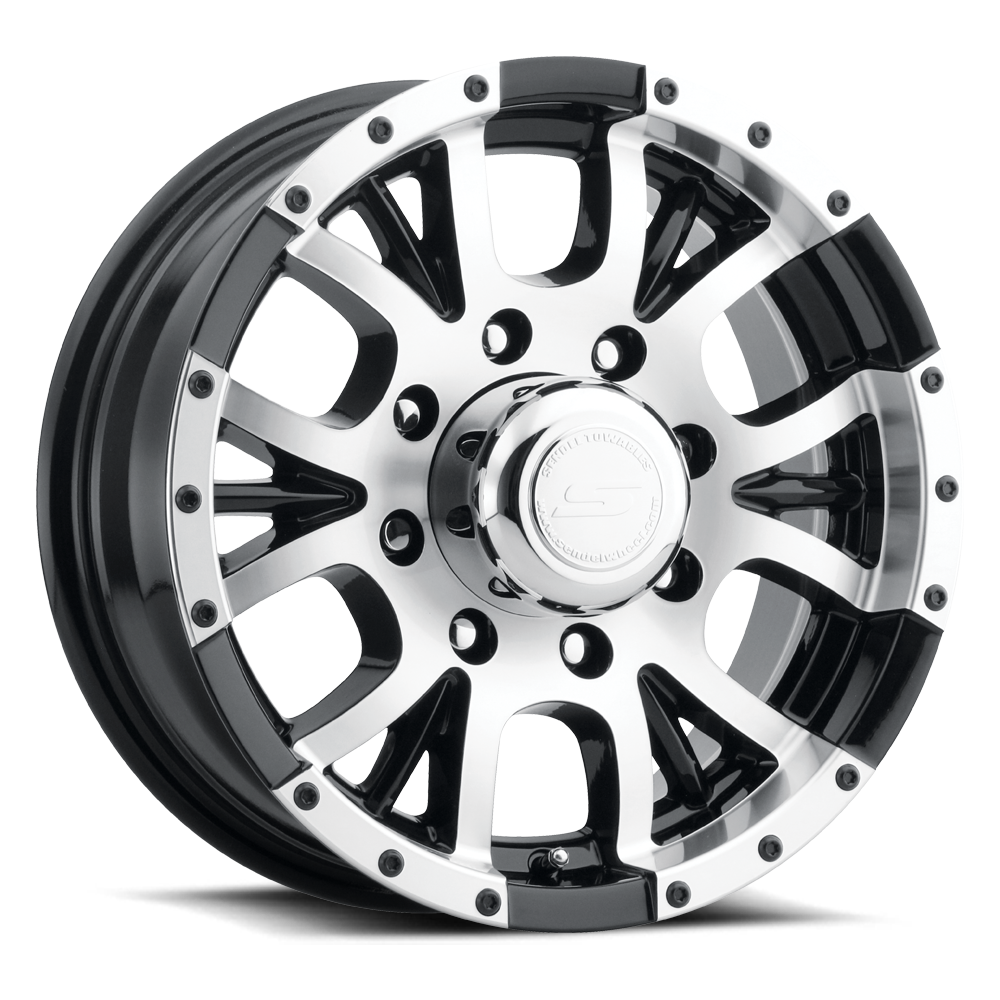

T13 -
BLACK MACHINED
Subject to Availability
12X4 13X5 14X5.5 15X6 16X6.5
New for 2019
16x6.5 6 lug @ 3750 lbs & 16x6.5 8 lug @ 4400 lbs
18x9 5 lug @ 2220 lbs
CAPS OPTIONAL
| ITEM NUMBER | DTC Article # | SIZE | BOLT CIRCLE | OFFSET | CENTER BORE | LOAD RATING |
|---|---|---|---|---|---|---|
| T13-24440BM | 12X4 | 4/4.00 | +0 | 2.80 | 1220 @ 65 PSI | |
| T13-24545BM | 12X4 | 5/4.50 | +0 | 3.19 | 1220 @ 65 PSI | |
| T13-35440BM | 13X5 | 4/4.00 | +0 | 2.80 | 1480 @ 60 PSI | |
| T13-35545BM | 13X5 | 5/4.50 | +0 | 3.19 | 1660 @ 60 PSI | |
| T13-45545BM | 14X5.5 | 5/4.50 | +0 | 3.19 | 2200 @ 75 PSI | |
| T13-56545BM | 21841 | 15X6 | 5/4.50 | +0 | 3.19 | 2150 @ 80 PSI |
| T13-56550BM | 21842 | 15X6 | 5/5.00 | +0 | 3.19 | 2150 @ 80 PSI |
| T13-56655BM | 15X6 | 6/5.50 | +0 | 3.75 | 2850 @ 80 PSI | |
| T13-665655BM | 16X6.5 | 6/5.50 | +0 | 3.75 | 3750 LBS @ 110 PSI | |
| T13-665867BM | 16X6.5 | 8/6.50 | +0 | 4.90 | 4400 LBS @ 110 PSI | |
| T13-89545BM | 77879 | 18X9 | 5/4.50 | +10 | 3.19 | 2500 @ 65 PSI |
