T07GM -

GRAY MACHINED

13X5.5 14X5.5 15X6 16X6

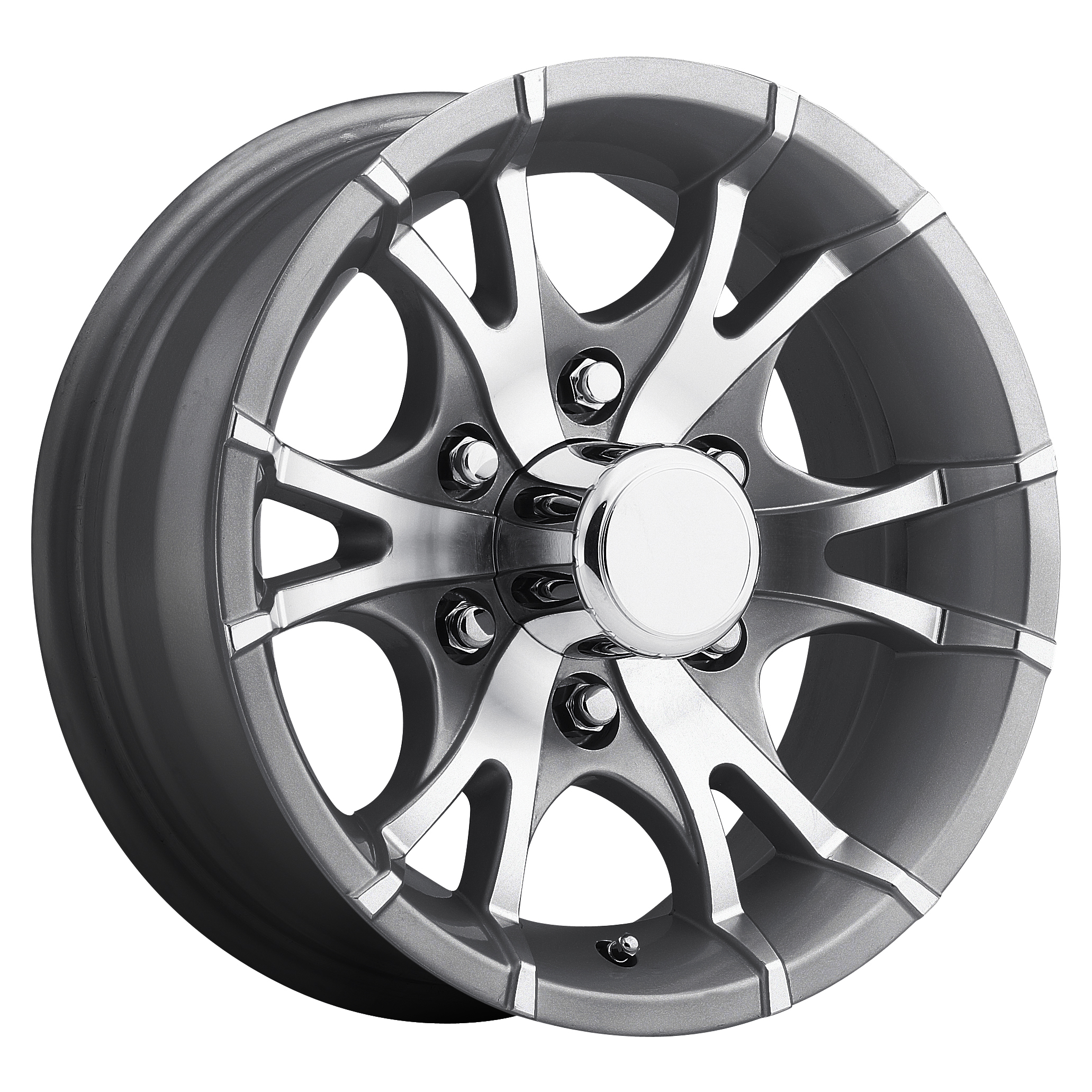

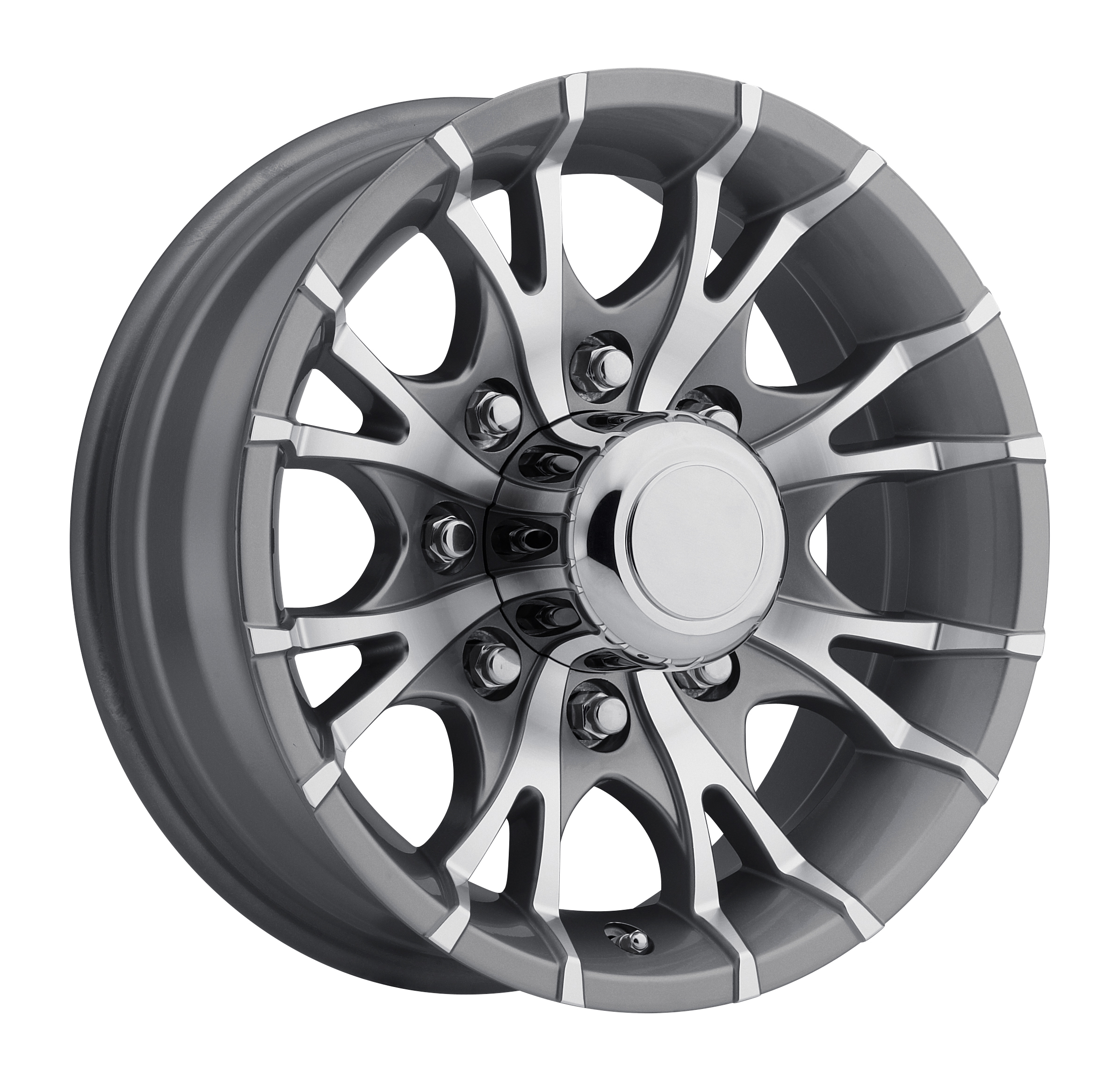

5 LUG SHOWN (6 LUG=6 SPOKES & 8 LUG=8 SPOKES) CAPS OPTIONAL

ITEM NUMBER	DTC Article #	Optional Caps / DTC Article #	SIZE	BOLT CIRCLE	OFF SET	CENTER BORE	LOAD RATING
T07-35545GM		S1050-319CCS / 118536	13X5.5	5/4.50	+0	3.19	1660 @ 65 PSI
T07-45545GM-1	101081	S1050-319CCS / 118536	14X5.5	5/4.50	+0	3.19	2200 @ 75 PSI
T07-56545GM	77865	S1050-319CCS / 118536	15X6	5/4.50	+0	3.19	2150 @ 80 PSI
T07-56655GM	21730	S1050-375CCS / 46877	15X6	6/5.5	+0	3.75	2830 @ 80 PSI
T07-66655GM (8 SPOKE DESIGN)		S1050-375CCS / 46877	16X6	6/5.5	+0	3.75	3200 @ 80 PSI
T07-66867GM**	77866	S1050-490CCS / 118549	16X6	8/6.5	+0	4.90	3750 @ 110 PSI

** 3750 LBS @ 110 PSI & CERTIFIED SAE J1204 SPECS
