Wheels > wheels > S20T

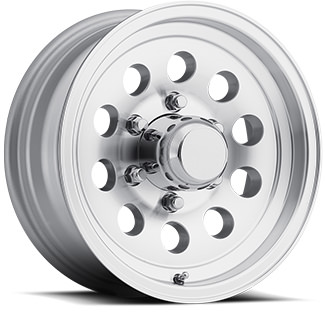

S20T
SILVER MACHINED
14X5.5 15X6 16X6 17.5x6.75
CAPS OPTIONAL
| ITEM NUMBER | DTC Article # | Optional Caps / DTC Article # | SIZE | BOLT CIRCLE | OFFSET | CENTER BORE | LOAD RATING |
|---|---|---|---|---|---|---|---|
| S20-45545T-1 | 101078 | S1050-319CCS / 118536 | 14X5.5 | 5/4.50 | 0 | 3.19 | 2200 @ 75 PSI |

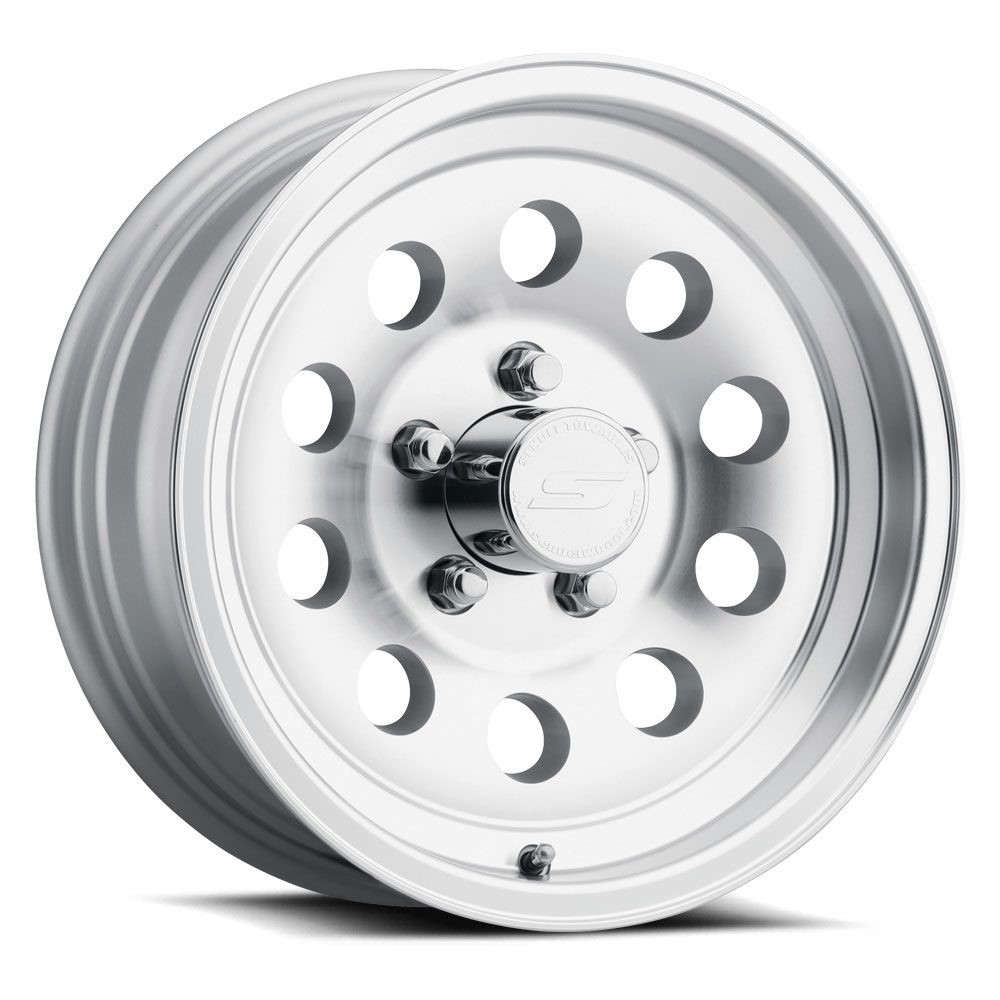

| S20-56545T-1 | 101079 | S1050-319CCS / 118536 | 15X6 | 5/4.50 | 0 | 3.19 | 2200 @ 80 PSI |
| S20-56550T | 159838 | S1050-319CCS / 118536 | 15X6 | 5/5.0 | 0 | 3.19 | 2200 @ 80 PSI |
| S20-56655T-2+ | 101073 | S1050-425CC / 46879 | 15X6 | 6/5.50 | 0 | 4.25 | 3200 @ 95 PSI |
| S20-66655T-1+ | 175561 | S1050-425CC / 46879 | 16X6 | 6/5.50 | 0 | 4.25 | 3300 @ 94 PSI |
| S20-66866T-1** | 101074 | S1050-490CCS / 118549 | 16X6 | 8/6.50 | 0 | 4.90 | 3960 @ 110 PSI |

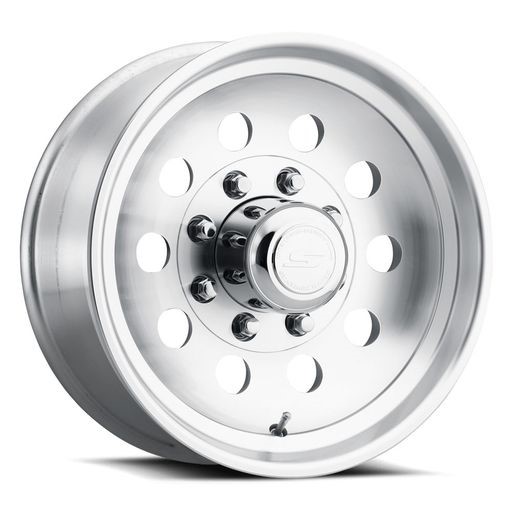

| S20-175675TS*** | 168364 | S1050-490CCS / 118549 | 17.5x6.75 | 8/6.50 | 0 | 4.90 | 6050 @ 130 PSI |
+ Airstream approved. ** 3960 LBS @ 110 PSI & CERTIFIED SAE J1204 SPECS ***Stud Piloted with steel lug inserts
